Electrofusion 90 Degree Reducing Tee EFTR11090063

An image of a polyethylene electrofusion reducing tee.

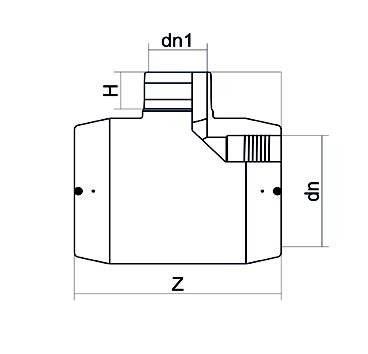

An image of a polyethylene electrofusion reducing tee.A technical drawing showing the dimensions of a polyethylene electrofusion reducing tee.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Size
Pressure Rating

dn dn1 Code H (mm) Z (mm) Weight (kg)
90 63 EFTR11090063 65 211 0.92
90 75 EFTR11090075 67 211 0.98
110 63 EFTR11110063 67 249 1.48
125 63 EFTR11125063 65 265 2.08
125 90 EFTR11125090 81 265 2.18
140 110 EFTR11140110 84 292 2.82
160 110 EFTR11160110 88 319 4.17
180 90 EFTR11180090 85 336 5.38
180 125 EFTR11180125 93 336 5.48
200 90 EFTR11200090 83 415 7.56
200 125 EFTR11200125 88 415 7.73
200 180 EFTR11200180 107 415 7.96
225 110 EFTR11225110 89 415 10
225 160 EFTR11225160 100 415 10.38
250 125 EFTR11250125 93 478 14.95
250 180 EFTR11250180 110 478 15.58
315 125 EFTR11315125 93 560 25.72
315 180 EFTR11315180 110 560 27.42
