Electrofusion End Cap EFCAP020

An image of a polyethylene electrofusion end cap.

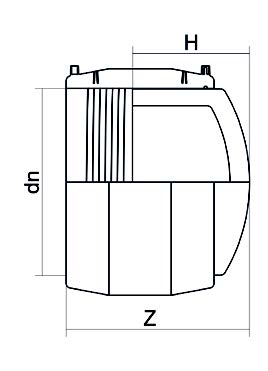

An image of a polyethylene electrofusion end cap.A technical drawing showing the dimensions of a polyethylene electrofusion end cap.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Size

dn Code H (mm) Z (mm) Weight (kg)
20 EFCAP11020 53 92 0.04
25 EFCAP11025 40 49 0.05
32 EFCAP11032 36 49 0.07
40 EFCAP11040 64 110 0.14
50 EFCAP11050 46 61 0.12
63 EFCAP11063 82 139 0.28
75 EFCAP11075 87 148 0.43
90 EFCAP11090 102 167 0.63
110 EFCAP11110 104 180 1.07
125 EFCAP11125 110 189 1.39
140 EFCAP11140 114 200 2.04
160 EFCAP11160 130 224 2.62
180 EFCAP11180 122 218 2.98
200 EFCAP11200 157 263 4.79
225 EFCAP11225 142 256 6.37
250 EFCAP11250 151 274 8.05
280 EFCAP11280 154 279 11.08
315 EFCAP11315 200 333 15.39
